Articulated Haulers

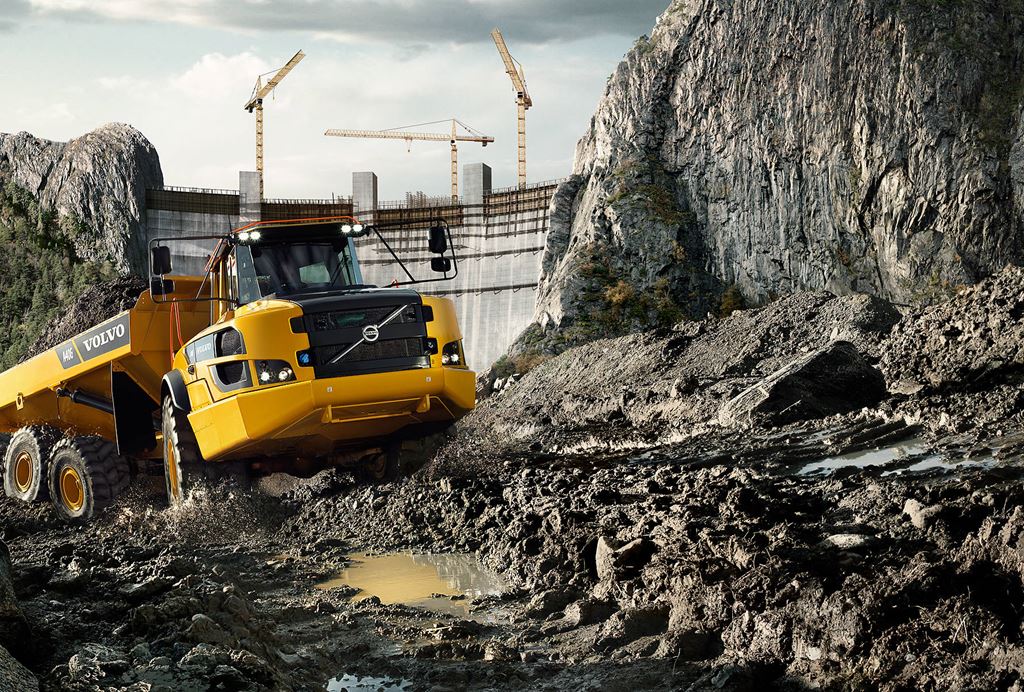

Volvo A40G
Since Volvo construction equipment invented the worlds first articulated hauler in 1966, machine owners and operators have got to know the legendary reputation of these market leading machines. With innovative features to help you tackle tough jobs, the A40G will provide the power, strength and reliability you need to maximise your productivity.
Features and Benefits

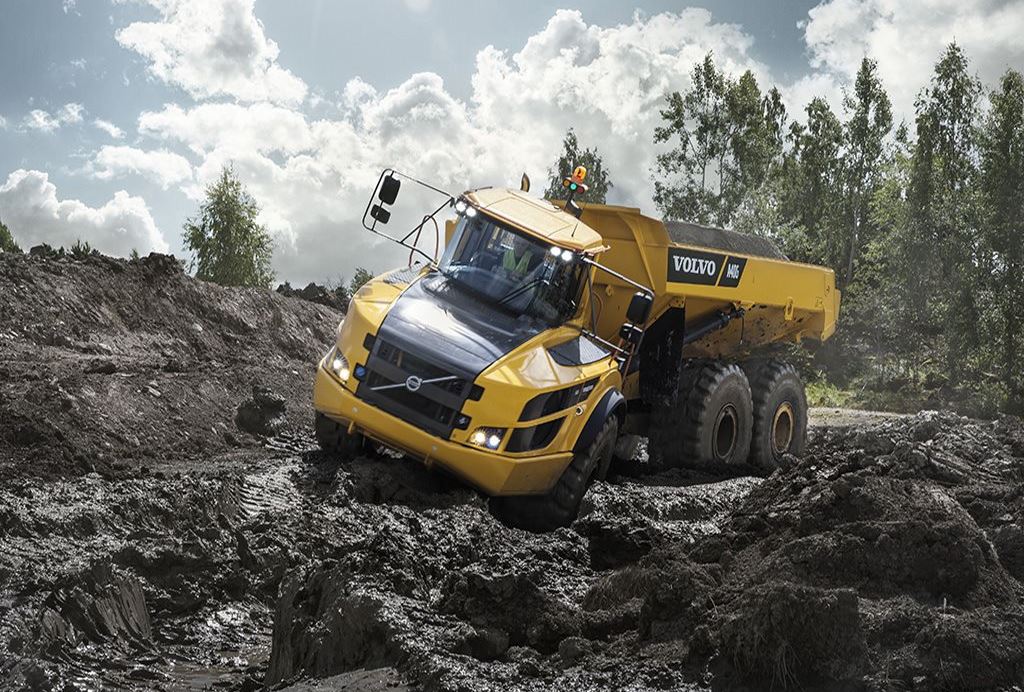

Volvo A40G Articulated Hauler - PUSHING POWER
All-Volvo drivetrain delivers low fuel consumption and superior reliability.
Articulation and oscillation joint has high ground clearance, maintenance-free rotating hitch design.

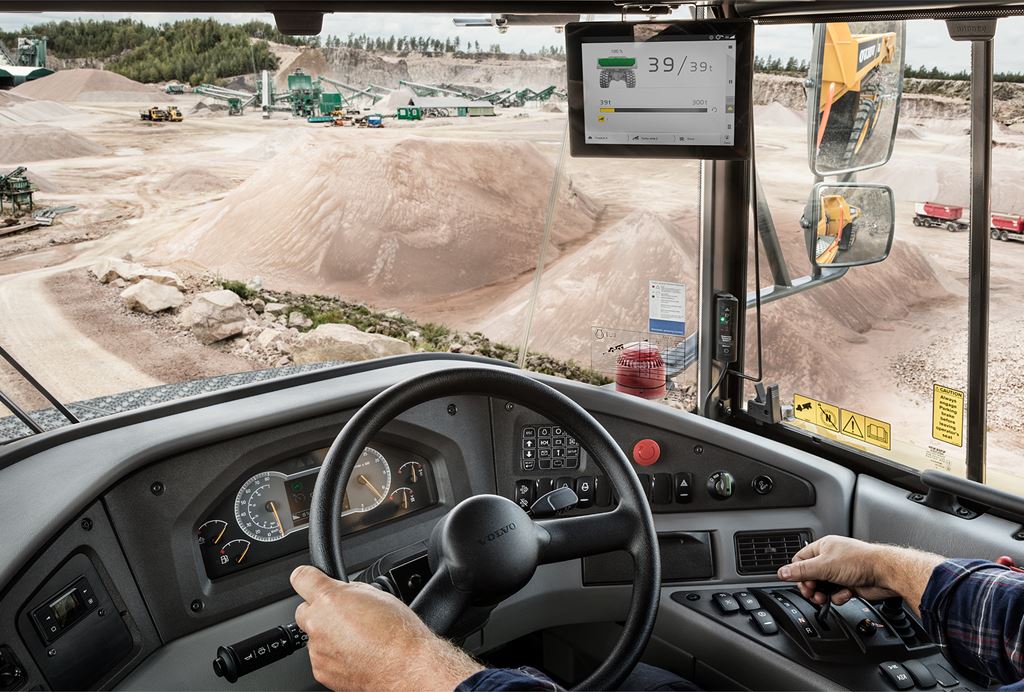

Equipped with Volvo Care Cab, centrally positioned with ideally-placed pedals, controls and switches.
Easy service access with front swing-down grill and 90 degree tilting hood.
CareTrack telematics system.
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
CAPACITIES
| Heaped Capacity | 31 yd³ (24 m³) |
| Fuel Tank | 127 gallons (US) (480 ltr) |
DRIVELINE
| Rear Suspension | 3 Point |
| Tire Type - Standard | Radial |
| Traction Control | Yes |
| Torque | 1,862 lbf / ft (2525 Nm) |
| Displacement | 781 Inches³ (12.8 ltr) |
| Rated Speed | 1,900 |
| Third Axle Differential | Locking |
| Front Suspension | Rubber Bushing / Shock Absorber |
| After Treatment System 3 | Selective Catalytic Reduction |
| Service Brake - Type | Wet Multi Disc |
| Drive Configuration | 6 x 6 |
| Transmission Model | PT 2,529 |
| Final Drive | Planetary |
| Engine Manufacturer | Volvo |
| Engine Output - Net | 465 hp (347 kW) |
| Engine Model | D13J |
| Centre Transfer Differential | Locking |
| Front Differential | Locking |
| Emission Rating | - |
| Number Of Cylinders | 6 |
| Transmission Manufacturer | Volvo |
| Front Suspension - Type | 3 Point |
| Engine Output - Gross | 469 hp (350 kW) |
| Tire size - Standard | 30 R25 |
| Rear Suspension - Type | 3 Point Bogie Beam |
| Transmission Type | Powershift |
| Second Axle Differential | Locking |
WEIGHTS
| Payload | 85,980 lbs (39000 kg) |
| Gross Weight | 153,662 lbs (69700 kg) |
| Net Weight | 67,682 lbs (30700 kg) |
DIMENSIONS
| Turning Radius - Outside | 29 ft 5 in ft/in (8957 mm) |
| Width over Tires | 11 ft 2 in ft/in (3403 mm) |
| Ground Clearance | 22 inches (553 mm) |
| Loading Height | 10 ft 3 in ft/in (3132 mm) |
| Length - Body | 19 ft 2 in ft/in (5844 mm) |
| Dump Angle | 70 |
| Width - Operating | 11 ft 3 in ft/in (3430 mm) |
| Hoist - Type | Twin, 1-Stage |
| Width - Transport | 11 ft 3 in ft/in (3430 mm) |
| Wheelbase | 18 ft ft/in (5488 mm) |
| Turning Radius - Inside | 14 ft 2 in ft/in (4327 mm) |
| Full Dump Height | 23 ft 10 in ft/in (7265 mm) |
| Height - Max | 11 ft 10 in ft/in (3599 mm) |
| Approach Angle | 24 |
| Articulation Angle | 45 |
| Length - Overall | 36 ft 11 in ft/in (11263 mm) |
| Height - Over Cab | 11 ft 10 in ft/in (3599 mm) |
| Width - Cab | 70 inches (1722 mm) |
PERFORMANCE
| Front - Unladen | 16 PSI (111 kPa) |
| Unladen Axle Load - Front | 35,494 lbs (16100 kg) |
| Laden Axle Load - Rear | 54,289 lbs (24625 kg) |
| Laden Axle Load - Centre | 54,289 lbs (24625 kg) |
| Cycle Time - Raise | 12 |
| Speed - Forward Maximum | 35 mph (57 kph) |
| Speed - Forward Maximum | 35 mph (57 kph) |
| Laden Axle Load - Centre + Rear | 108,578 lbs (49250 kg) |
| Rear - Laden | 24 PSI (167 kPa) |
| Unladen Axle Load - Centre + Rear | 32,187 lbs (14600 kg) |
| Speed - Reverse Maximum | 11 mph (18 kph) |
| Front - Laden | 20 PSI (139 kPa) |
| Unladen Axle Load - Centre | 16,094 lbs (7300 kg) |
| Rear - Unladen | 7 PSI (47 kPa) |
| Unladen Axle Load - Rear | 16,094 lbs (7300 kg) |
| Laden Axle Load - Front | 45,084 lbs (20450 kg) |
