Articulated Haulers

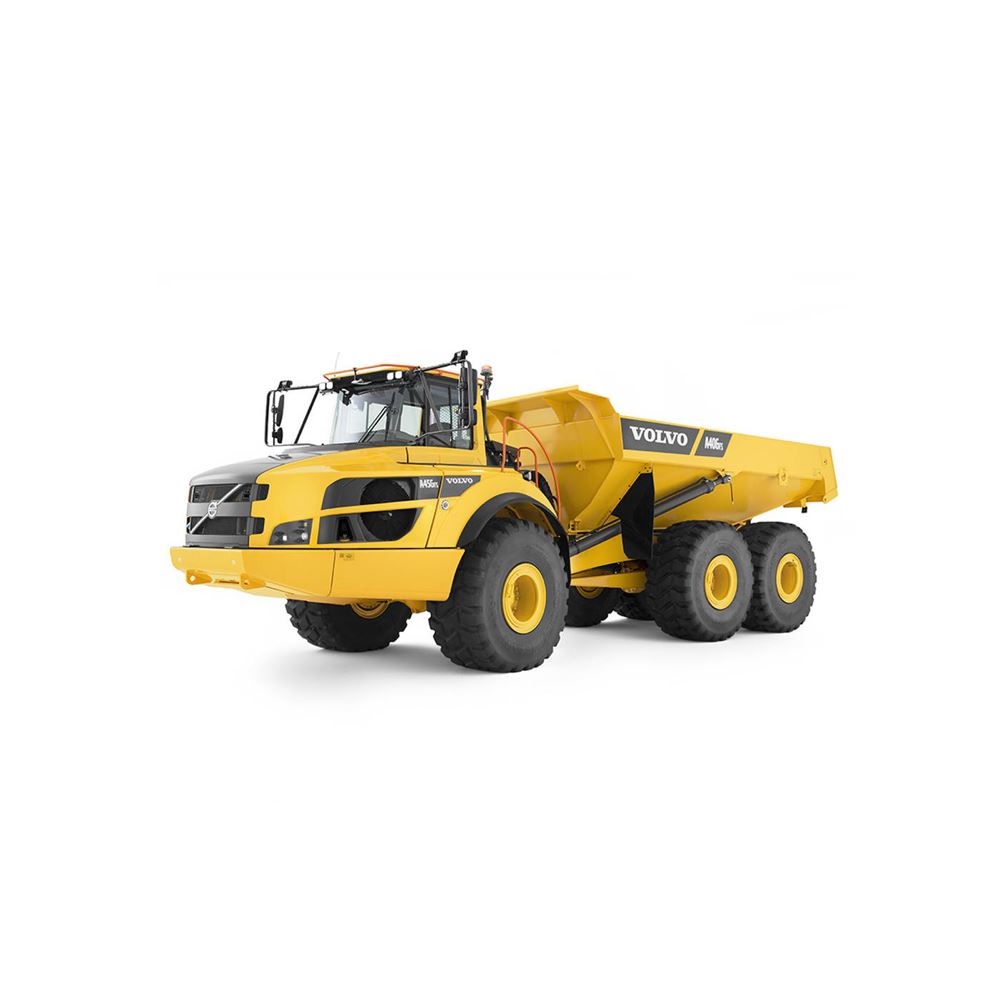

Volvo A45GFS
Get ready to work with the Volvo A45G Full Suspension articulated hauler. Designed for heavy-hauling in severe off-road operations, the machine offers continuous productivity, proven Volvo technology and impressive comfort, contributing to sustainable operations. Hauling is easier and more efficient.
Features and Benefits
Volvo A45GFS Articulated Hauler - BIGGER STRONGER FASTER
All-Volvo drivetrain delivers low fuel consumption and superior reliability.
Articulation and oscillation joint has high ground clearance, maintenance-free rotating hitch design.
Equipped with Volvo Care Cab, centrally positioned with ideally-placed pedals, controls and switches.
Easy service access with front swing-down grill and 90 degree tilting hood.
CareTrack telematics system.
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Second Axle Differential | Locking |
| Transmission Type | PowerTronic |
| Rear Suspension - Type | 3 Point Bogie Beam |
| Tire size - Standard | 30 R25 |
| Engine Output - Gross | 469 hp (350 kW) |
| Front Suspension - Type | 3 Point |
| Transmission Manufacturer | Volvo |
| Number Of Cylinders | 6 |
| Emission Rating | Tier 4 |
| Front Differential | Locking |
| Centre Transfer Differential | Locking |
| Engine Model | D16J |
| Rear Suspension | Nitrogen/Oil-Filled Struts - Auto Levelling |
| Engine Output - Net | 465 hp (347 kW) |
| Engine Manufacturer | Volvo |
| Final Drive | Planetary |
| Transmission Model | PT 2,519 |
| Drive Configuration | 6 x 6 |
| Service Brake - Type | Wet Multi Disc |
| After Treatment System 3 | Selective Catalytic Reduction |
| Front Suspension | Nitrogen/Oil-Filled Struts - Auto Levelling |
| Third Axle Differential | Locking |
| Rated Speed | 1,800 |
| Displacement | 982 Inches³ (16.1 ltr) |
| Tire Type - Standard | Radial |
| Torque | 1,862 lbf / ft (2525 Nm) |
| Traction Control | Yes |
DIMENSIONS
| Width - Cab | 70 inches (1772 mm) |
| Height - Over Cab | 11 ft 10 in ft/in (3599 mm) |
| Length - Overall | 36 ft 11 in ft/in (11263 mm) |
| Articulation Angle | 45 |
| Approach Angle | 25 |
| Height - Max | 11 ft 10 in ft/in (3599 mm) |
| Full Dump Height | 23 ft 10 in ft/in (7265 mm) |
| Turning Radius - Inside | 14 ft 2 in ft/in (4327 mm) |
| Wheelbase | 18 ft ft/in (5488 mm) |
| Width - Transport | 11 ft 3 in ft/in (3430 mm) |
| Hoist - Type | Twin, 1-Stage |
| Width - Operating | - |
| Dump Angle | 70 |
| Length - Body | 19 ft 2 in ft/in (5844 mm) |
| Loading Height | 10 ft 6 in ft/in (3200 mm) |
| Ground Clearance | 22 inches (553 mm) |
| Width over Tires | 11 ft 2 in ft/in (3403 mm) |
| Turning Radius - Outside | 29 ft 5 in ft/in (8957 mm) |
PERFORMANCE
| Laden Axle Load - Front | 45,746 lbs (20750 kg) |
| Unladen Axle Load - Rear | 15,433 lbs (7000 kg) |
| Rear - Unladen | 7 PSI (48 kPa) |
| Unladen Axle Load - Centre | 15,433 lbs (7000 kg) |
| Front - Laden | 21 PSI (143 kPa) |
| Speed - Reverse Maximum | 11 mph (18 kph) |
| Unladen Axle Load - Centre + Rear | 30,865 lbs (14000 kg) |
| Rear - Laden | 25 PSI (174 kPa) |
| Laden Axle Load - Centre + Rear | 111,885 lbs (50750 kg) |
| Speed - Forward Maximum | 35 mph (57 kph) |
| Cycle Time - Raise | 12 |
| Laden Axle Load - Centre | 55,943 lbs (25375 kg) |
| Laden Axle Load - Rear | 55,943 lbs (25375 kg) |
| Unladen Axle Load - Front | 36,676 lbs (16500 kg) |
| Front - Unladen | 17 PSI (114 kPa) |
CAPACITIES
| Heaped Capacity | 33 yd³ (25.1 m³) |
| Fuel Tank | 127 gallons (US) (480 ltr) |
WEIGHTS
| Net Weight | 67,241 lbs (30500 kg) |
| Gross Weight | 157,631 lbs (71500 kg) |
| Payload | 90,390 lbs (41000 kg) |
