Compactors

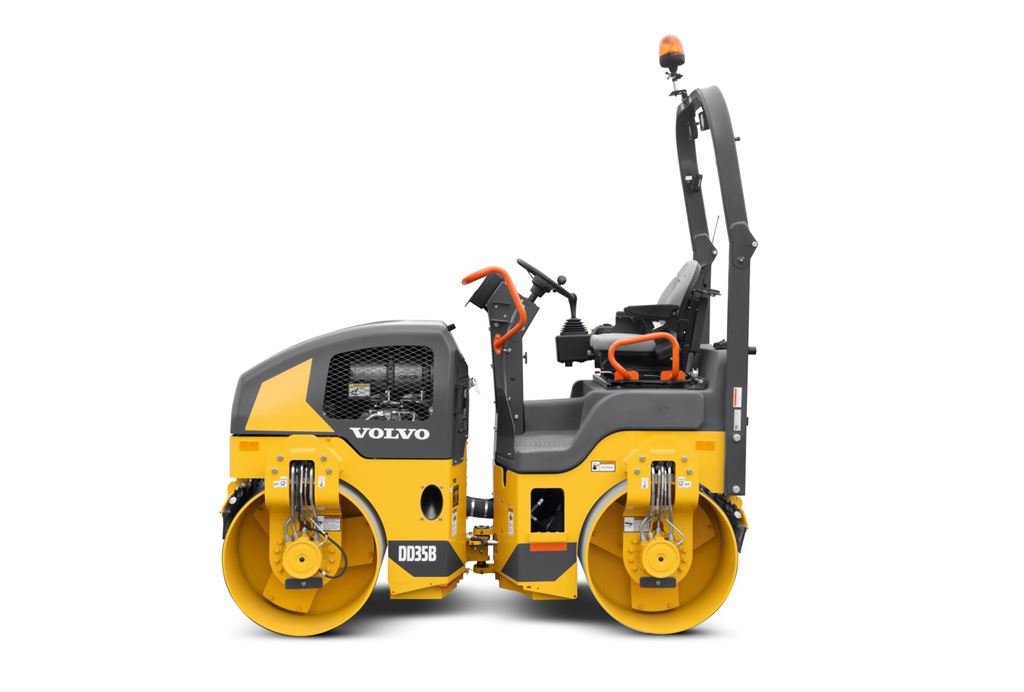

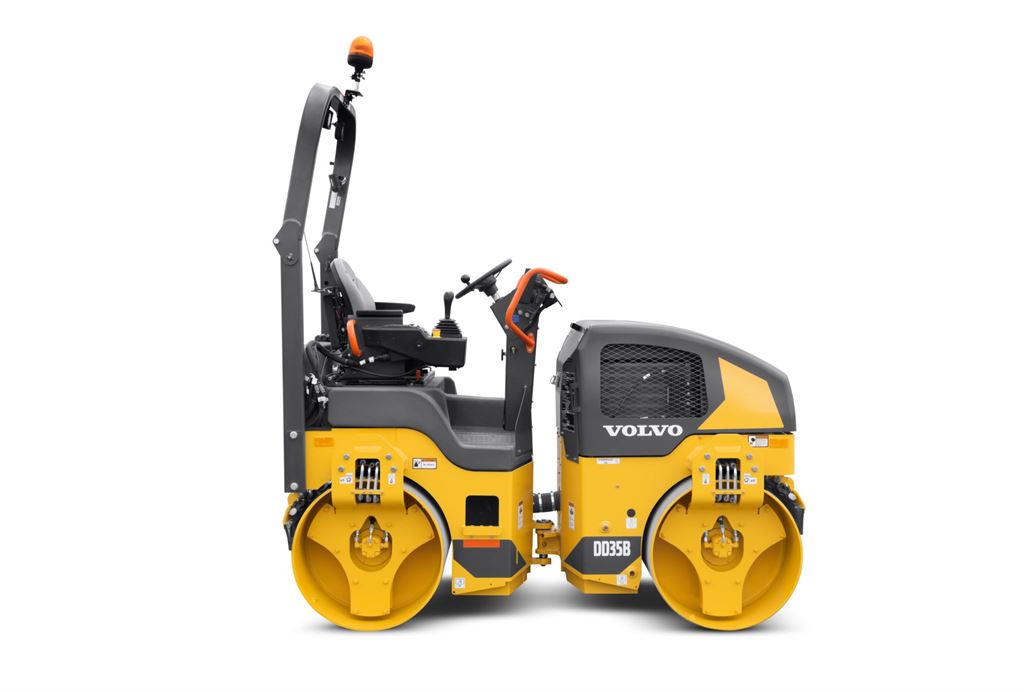

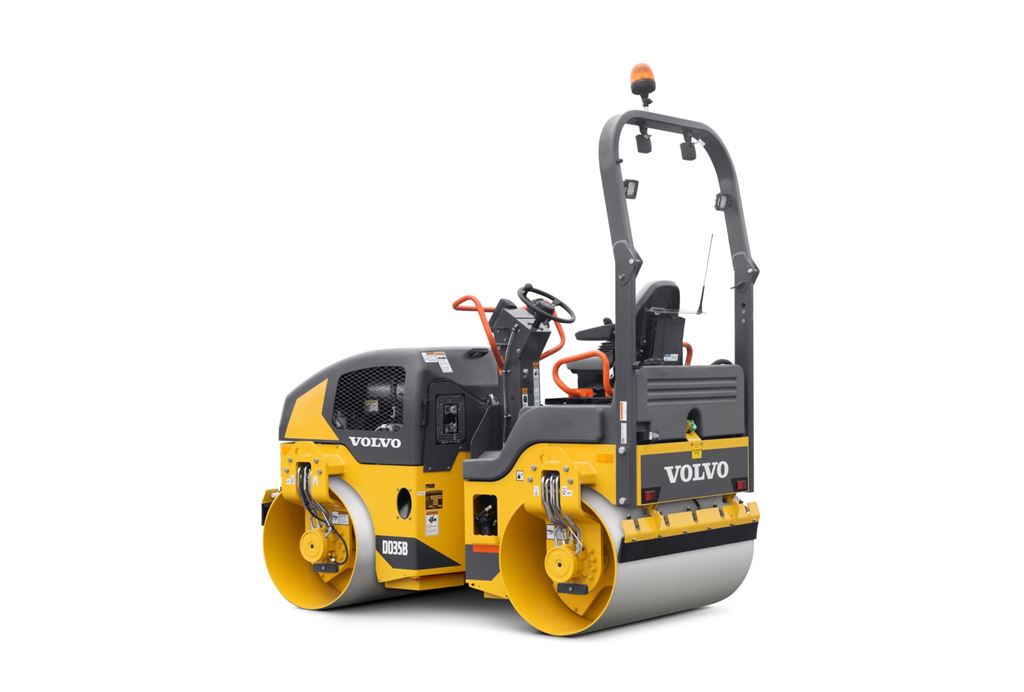

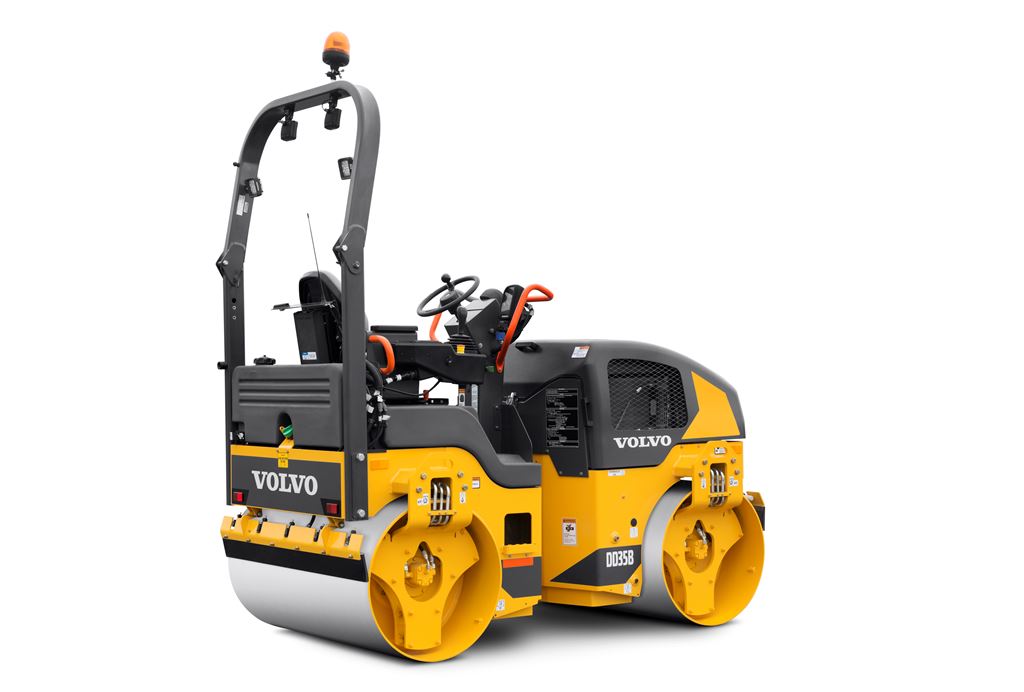

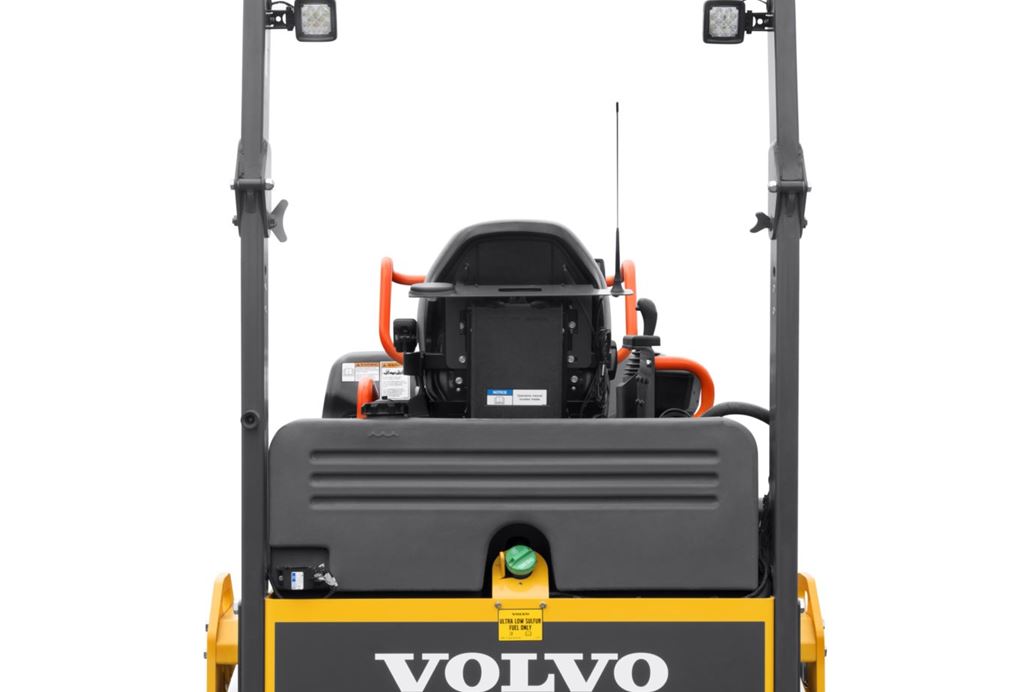

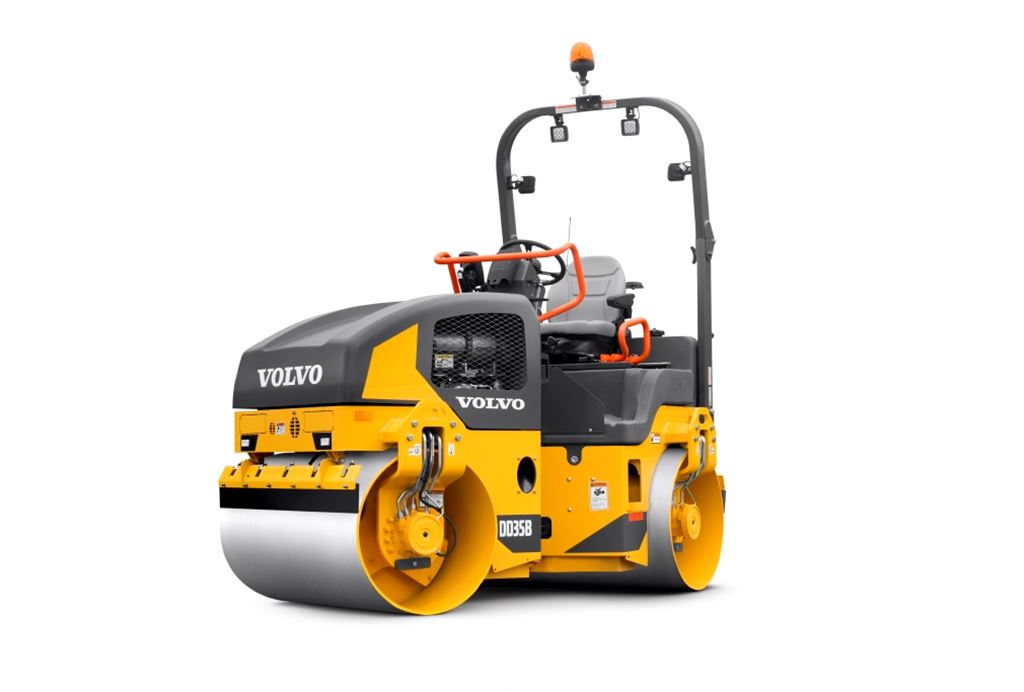

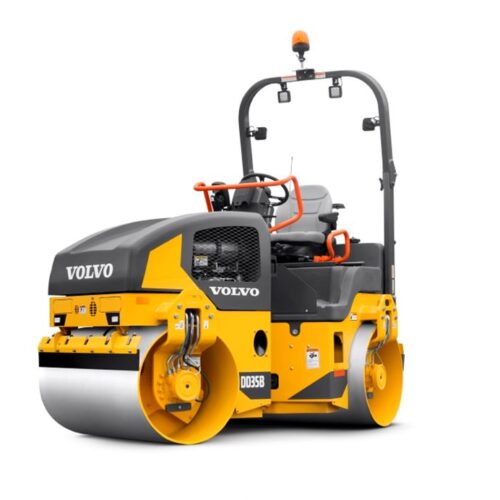

Volvo DD35B
Introducing the DD35B asphalt roller from Volvo, a highly efficient machine designed to increase performance and reduce fuel consumption on small scale compaction projects. Featuring the new engine, this machine meets the Tier 4 Final emissions regulations. Experience high performance machine and enhanced productivity with Volvo.
Downloads
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Engine Output | 50 hp (37 kW) |
| Emission Rating | - |
| Diesel Particulate Filter | Yes |
| Diesel Oxidation Catalyst | Yes |
| Selective Catalytic Reduction | No |
| Exhaust Gas Recirculation | - |
| Specific Fuel Consumption @ Rated Power | - |
| Displacement | 111 Inches³ (1.826 ltr) |
| Engine model | D 1,803 - CR-TE4B |
| Rated Speed | 2,700 |
| Transmission | Hydrostatic |
| Engine manufacturer | Kubota |
| Engine manufacturer | Kubota |
DIMENSIONS
| Drum Width - Front | 54 inches (1375 mm) |
| Overall Length | 101 inches (2566 mm) |
| Overall Width | 59 inches (1485 mm) |
| Drum Diameter - Front | 29 inches (740 mm) |
| Turning Radius - Inside | 100 inches (2532 mm) |
| Wheelbase | 68 inches (1725 mm) |
| Turning Radius - Outside | - |
| Drum Diameter - Rear | 29 inches (740 mm) |
| Drum Width - Rear | 54 inches (1375 mm) |
| Ground Clearance | 6 inches (146 mm) |
| Rolling Width | 54 inches (1375 mm) |
| Height - With ROPS | 106 inches (2681 mm) |
| Drum Shell Thickness | 1 inches (16 mm) |
| Height - Without ROPS | 78 inches (1977 mm) |
WEIGHTS
| Operating Weight | 8,185 lbs (3713 kg) |
| Weight - Rear | 4,255 lbs (1930 kg) |
| Weight - Front | 3,930 lbs (1783 kg) |
PERFORMANCE
| Centrifugal force 7 - rear | - |
| Travel Speed 5 | - |
| Drum Oscillation | - |
| Travel Speed 3 | - |
| Amplitude stage 7 - rear | - |
| Max. Travel Speed | 6 mph (10.2 kph) |
| Centrifugal force 6 - rear | - |
| Amplitude stage 8 - front | - |
| Centrifugal force 8 - rear | - |
| Linear Drum Load - Front | - |
| Amplitude stage 7 - front | - |
| Amplitude stage 6 - rear | - |
| Amplitude stage 1 - front | 0 inches (0.33 mm) |
| Amplitude stage 6 - front | - |
| Travel Speed 1 | 6 mph (10.2 kph) |
| Travel Speed 2 | - |
| Frequency - stage 1 - front | 67 |
| Travel Speed 6 | - |
| Travel Speed 4 | - |
| Centrifugal force 8 - front | - |
| Amplitude stage 8 - rear | - |
| Linear Drum Load - Rear | - |
| Number of Frequency/Amplitude Settings | 1 |
| Centrifugal force 7 - front | - |
| Drive To Drums | Both |
| Centrifugal force 6 - front | - |
CAPACITIES
| Tank Capacity For Drum | 79 gallons (US) (299 ltr) |
| Fuel Tank | 17 gallons (US) (66 ltr) |
| DEF Tank | - |
DESCRIPTION
| Platform | CareTrack |
| Telematics Available | Yes |
