Excavators

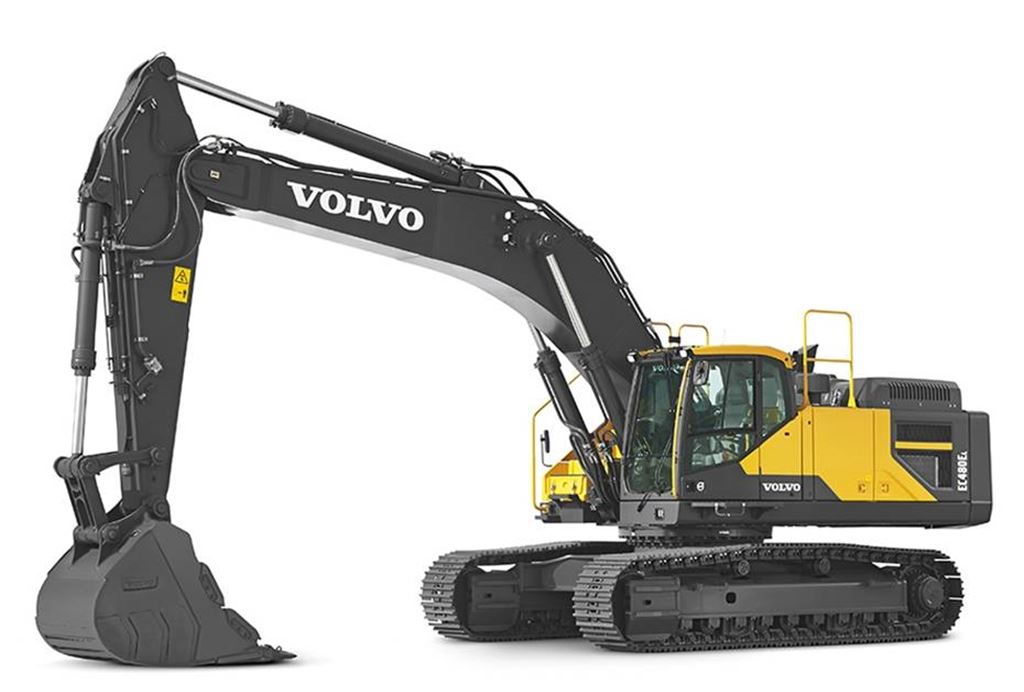

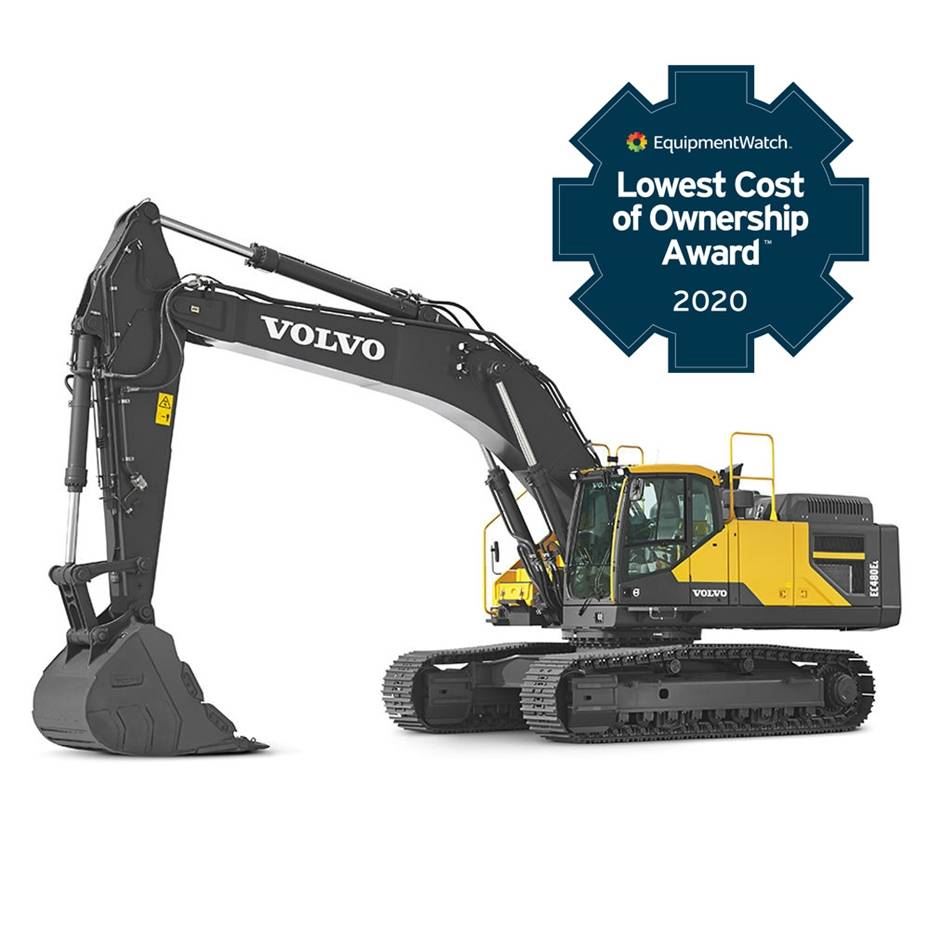

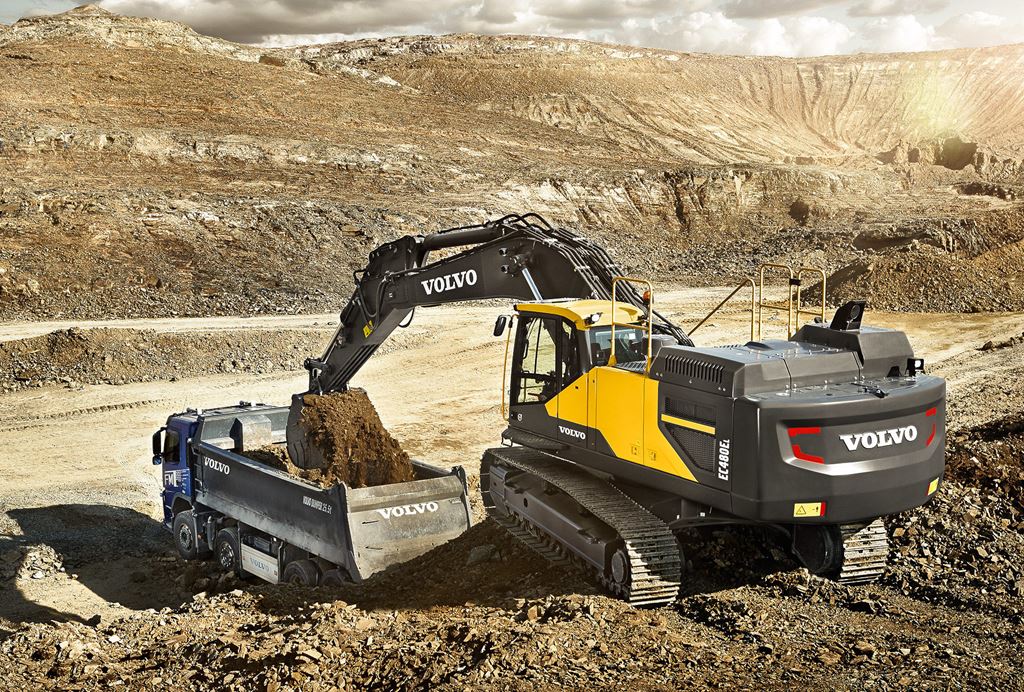

Volvo EC 480 E

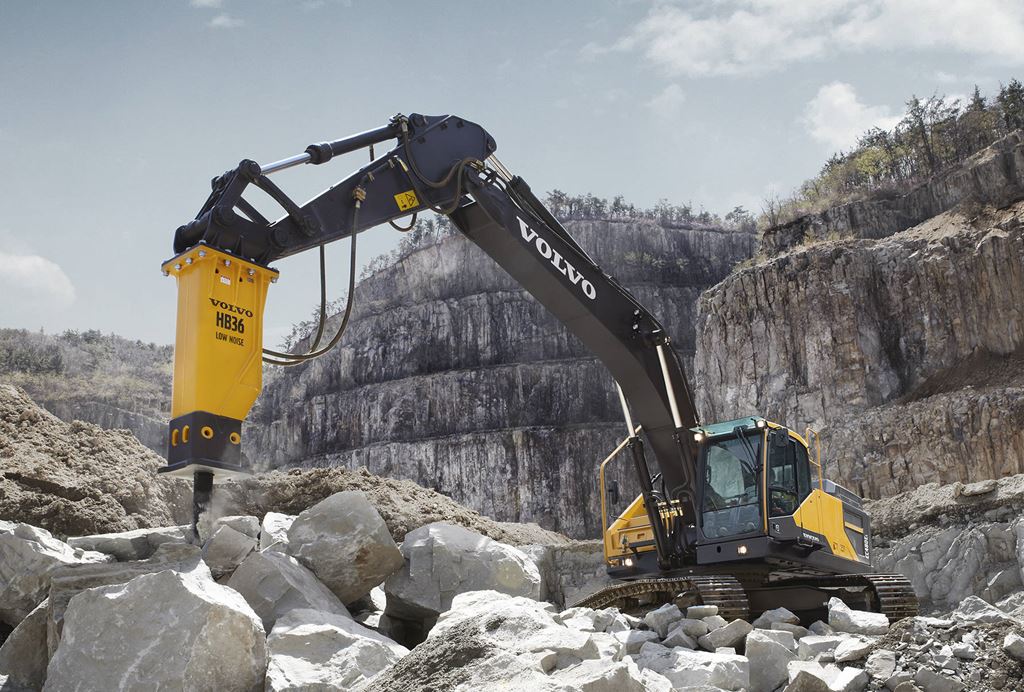

The Volvo EC480E excavator is the heavy-duty production machine you can rely on for quarrying, road building, truck loading, mining construction and mass excavation, utility trenching and more. If youre looking for heavy equipment with powerful hydraulic excavator performance, look no further.
Features and Benefits
Volvo EC 480 E Excavator - PRODUCTIVITY AT YOUR FINGERTIPS
ActiveCare Direct

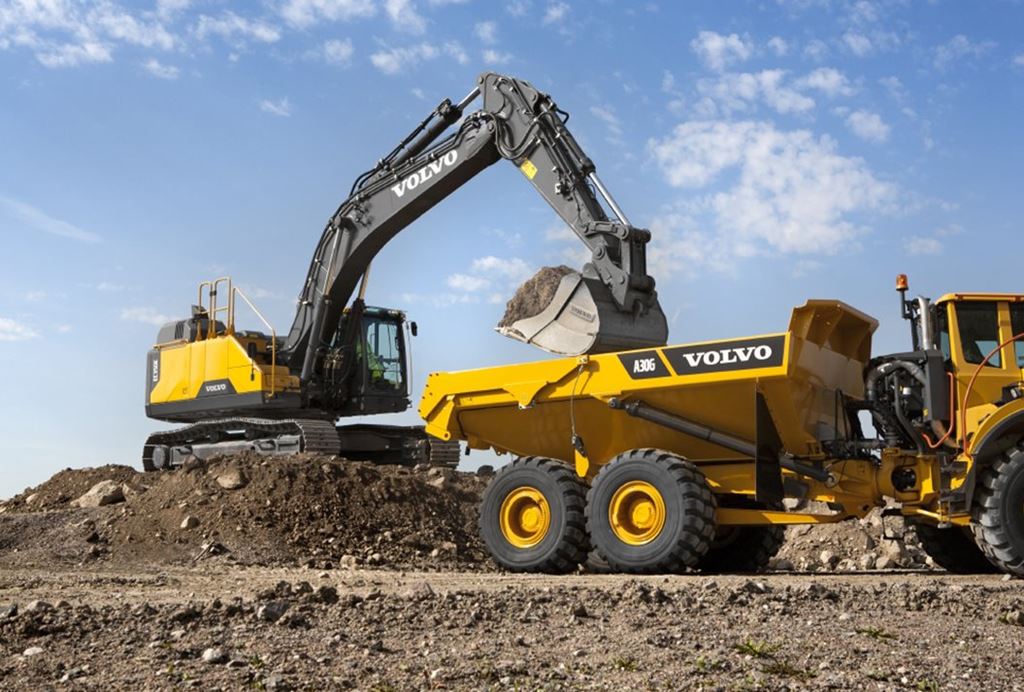

Fast cycle times

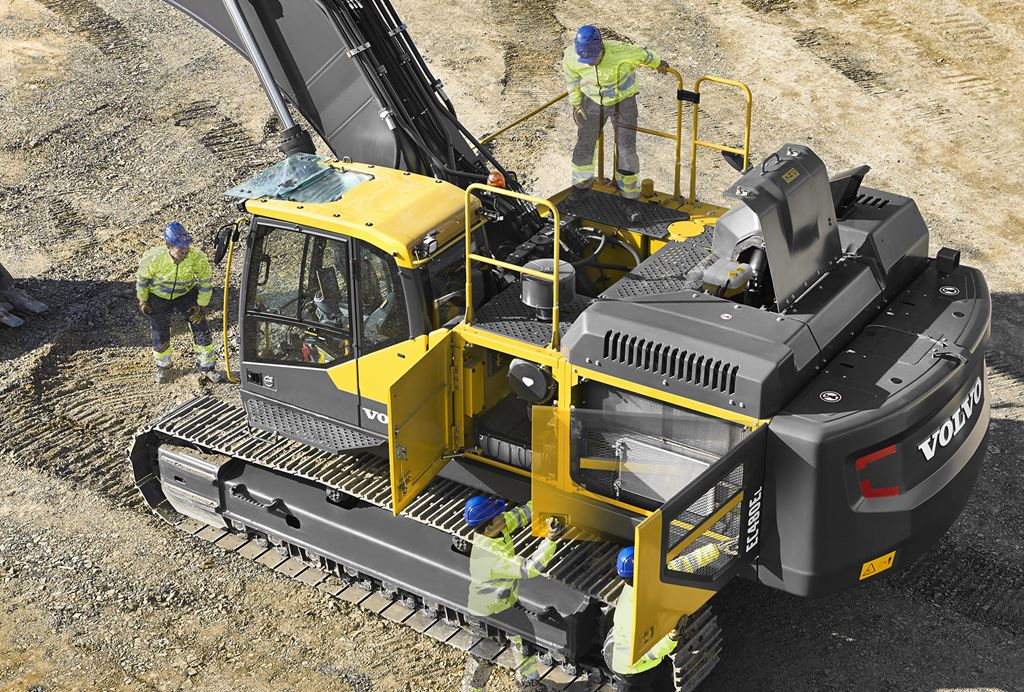

Easy Service Access

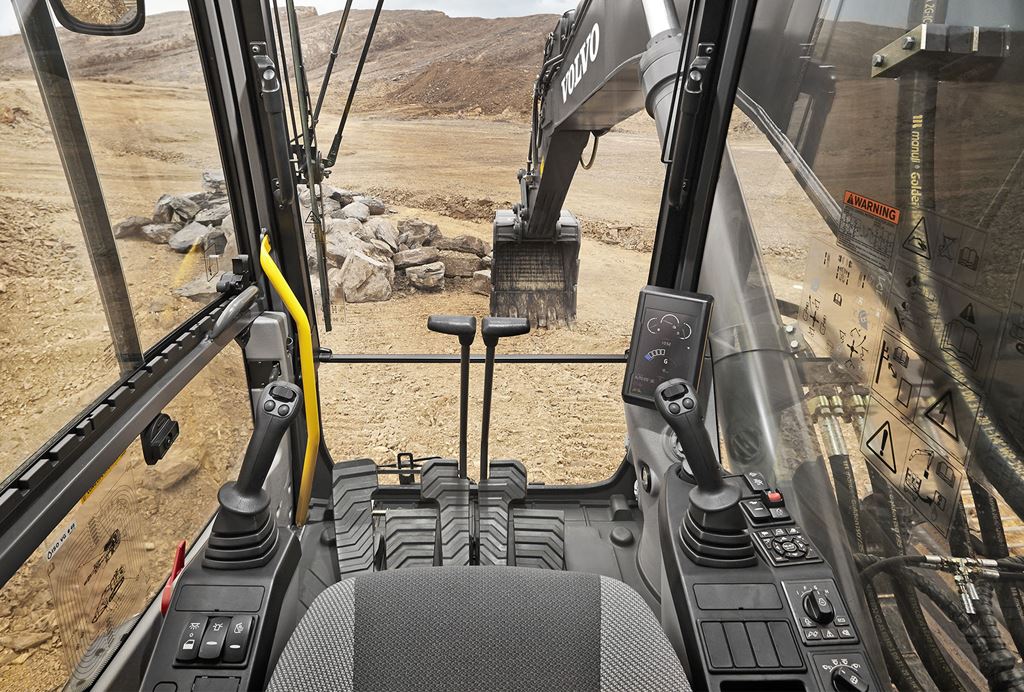

Comfort Cab

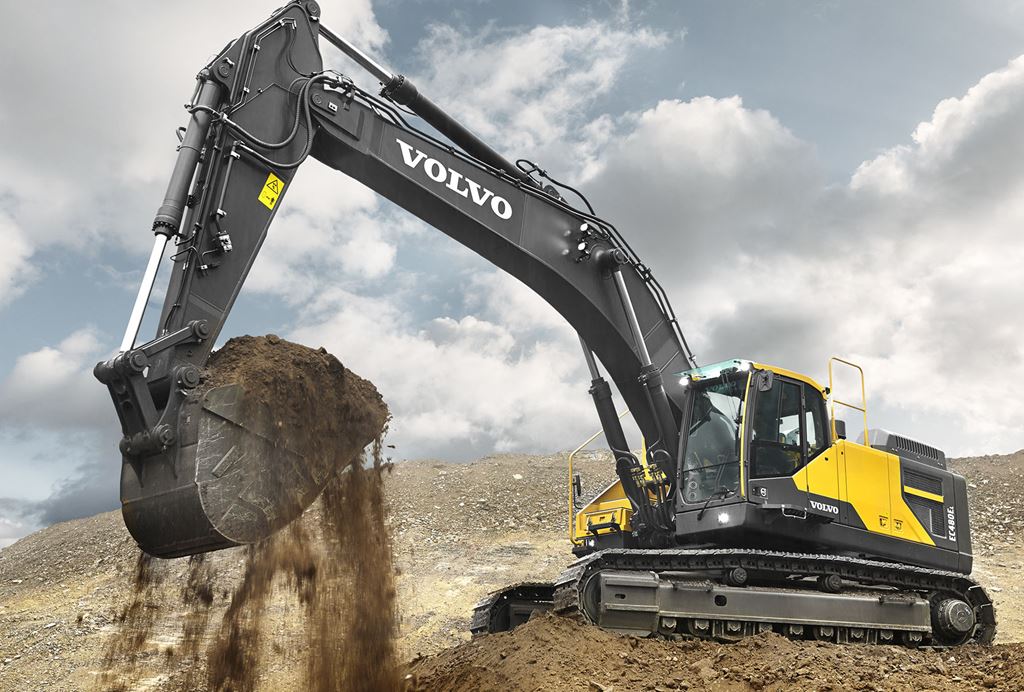

Outstanding Fuel Efficiency

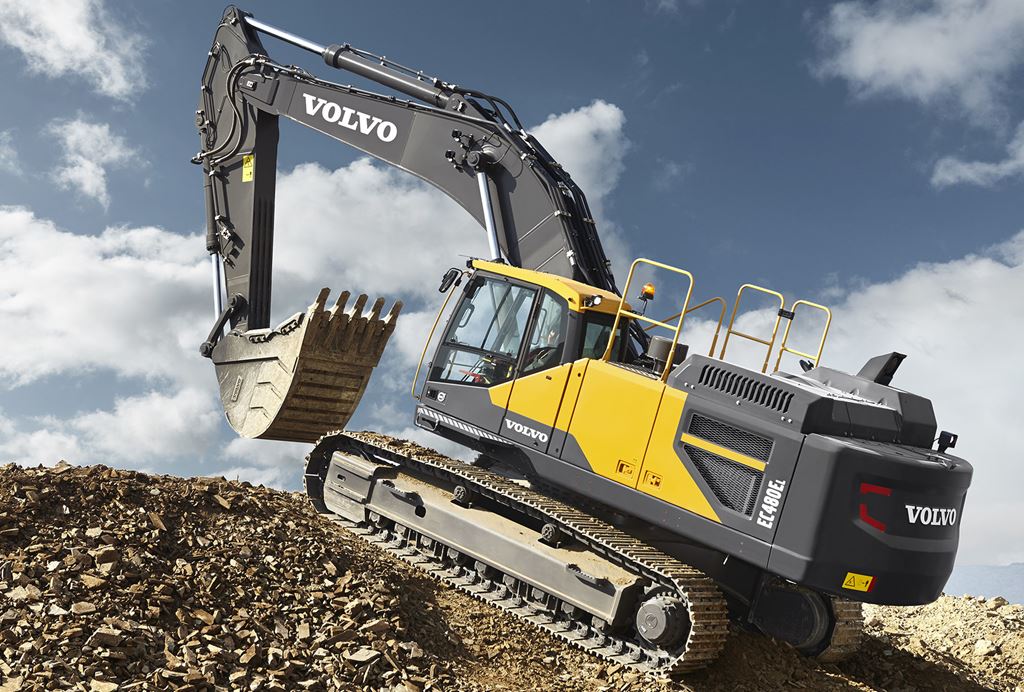

Lifetime Frame & Structure Guarantee (Frame, Boom, Arm)
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
DRIVELINE
| Engine Output - Gross | 372 hp (278 kW) |
| Track Shoe Width | 36 inches (900 mm) |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine Output - Net | 371 hp (277 kW) |
| Number Of Track Rollers - Each Side | 9 |
| Emission Rating | Tier 4 / Stage IV |
| Rated speed | 1,800 |
| Engine Model | D 13J |
| Displacement | 781 Inches³ (12.8 ltr) |
| Aspiration | Turbo, charge air cooled |
DIMENSIONS
| Heaped Bucket Capacity - Standard | 3 yd³ (2.1 m³) |
| Vertical Wall - Mono Boom | 22 ft 3 in ft/in (6774 mm) |
| Dig Height - Mono Boom | 36 ft 4 in ft/in (11064 mm) |
| Dump Height - Mono Boom | 24 ft 8 in ft/in (7526 mm) |
| Digging Reach - Mono Boom | 373 ft 2 in ft/in (12146 mm) |
| Width over fixed tracks | 11 ft 11 in ft/in (3640 mm) |
| Transport Length Mono Boom | 39 ft 10 in ft/in (12134 mm) |
| Transport Height - Maximum | 15 ft ft/in (4572 mm) |
| Dig Depth - Mono Boom | 25 ft 8 in ft/in (7828 mm) |
| Overall Undercarriage Width | 11 ft 11 in ft/in (3640 mm) |
| Ground Level Reach - Mono Boom | 39 ft 2 in ft/in (11927 mm) |
| Bucket Weight - Standard | 5,144 lbs (2333 kg) |
| Ground Clearance | 20 inches (515 mm) |
| Track Length On Ground | 14 ft 4 in ft/in (4370 mm) |
| Overall Bucket Width - Standard | 59 inches (1500 mm) |
| Zero Tailswing? | No |
| Zero Tailswing | No |
| Longest Dipper | 15 ft 9 in ft/in (4800 mm) |
| Standard Dipper | 11 ft ft/in (3350 mm) |
| Mono Boom - Size | 23 ft ft/in (7 m) |
| Capacity Standard | - |
| Track Gauge - Standard | 9 ft ft/in (2740 mm) |
WEIGHTS
| Operating Weight | 107,640 lbs (48817 kg) |
PERFORMANCE
| Side lift - Max Reach | 13,830 lbs (6270 kg) |
| Boom Pressure | 4,690 PSI (324 bar) |
| Standard Shoe Width | 36 inches (900 mm) |
| Ground Bearing Pressure | 9 PSI (59.4 kPa) |
| End lift - Max Reach | 22,270 lbs (10100 kg) |
| Bucket Breakout | 63,935 lbf (284 kN) |
| Total Flow | 198 gallons (US) / min (752 lt/min) |
| Main Pump | Variable axial piston |
| Dipper Tearout | 49,435 lbf (220 kN) |
CAPACITIES
| Fuel Tank | 180 gallons (US) (680 ltr) |
| Hydraulic Tank | 71 gallons (US) (270 ltr) |
DESCRIPTION
| Telematics Available | Yes |
| Dipper Length - Standard | 11 ft ft/in (3350 mm) |
HYBRID SYSTEM UNIT
| Rated Power Output | - |
| Type | - |
