Excavators

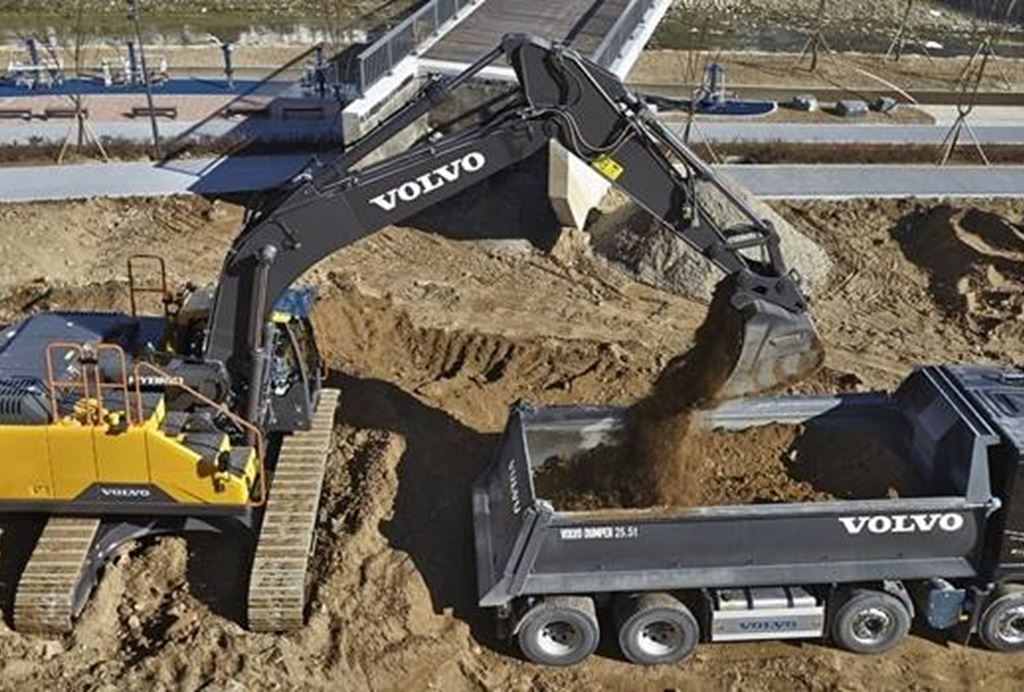

Volvo EC300EL Hybrid
Introducing the new EC300E Hybrid. Featuring unique hydraulic hybrid Volvo technology, the excavator uses the boom down motion to charge an accumulator, with the stored energy driving an assist motor, lowering the torque requirement on the engine. This results in up to 15% lower fuel consumption while delivering all the power and performance you would expect from a conventional EC300E. The result is up to 17% increase in fuel efficiency while delivering all the power and performance you would expect from a conventional EC300E.
Features and Benefits
Volvo EC300EL Hybrid Excavator - SIMPLE SOLUTION, BIG SAVING
17% More fuel efficiency
100% Volvo engineered
15% Lower fuel consumption
Reduces CO2 emissions by up to 13%
Volvo Eco Mode
Proportional two-pump flow
Bolt on wear parts
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
HYBRID SYSTEM UNIT
| Rated Power Output | - |
| Type | Lithium-ion battery |
DRIVELINE
| Aspiration | Turbo |
| Displacement | 470 Inches³ (7.7 ltr) |
| Engine Output - Gross | 253 hp (189 kW) |
| Engine Model | D 8M |
| Rated speed | 1,600 |
| Emission Rating | Tier 4 |
| Number Of Track Rollers - Each Side | 9 |
| Engine Output - Net | 252 hp (188 kW) |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Track Shoe Width | 24 inches (600 mm) |
PERFORMANCE
| Dipper Tearout | 30,550 lbf (136 kN) |
| Main Pump | Variable axial piston |
| Total Flow | 146 gallons (US) / min (552 lt/min) |
| Bucket Breakout | 42,680 lbf (190 kN) |
| End lift - Max Reach | 14,920 lbs (6770 kg) |
| Ground Bearing Pressure | 9 PSI (60 kPa) |
| Standard Shoe Width | - |
| Boom Pressure | 4,830 PSI (333 bar) |
| Side lift - Max Reach | 9,530 lbs (4330 kg) |
DIMENSIONS
| Capacity Standard | ISO 7,451 |
| Mono Boom - Size | 20 ft 4 in ft/in (6.2 m) |
| Standard Dipper | 10 ft ft/in (3050 mm) |
| Longest Dipper | - |
| Zero Tailswing? | No |
| Zero Tailswing | No |
| Overall Bucket Width - Standard | - |
| Track Length On Ground | 13 ft 3 in ft/in (4015 mm) |
| Ground Clearance | 19 inches (475 mm) |
| Bucket Weight - Standard | - |
| Ground Level Reach - Mono Boom | 34 ft 6 in ft/in (10520 mm) |
| Overall Undercarriage Width | 10 ft 6 in ft/in (3190 mm) |
| Heaped Bucket Capacity - Standard | 2 yd³ (1.32 m³) |
| Dig Depth - Mono Boom | 24 ft 1 in ft/in (7340 mm) |
| Transport Height - Maximum | 11 ft 9 in ft/in (3570 mm) |
| Transport Length Mono Boom | 34 ft 5 in ft/in (10500 mm) |
| Width over fixed tracks | 10 ft 6 in ft/in (3190 mm) |
| Digging Reach - Mono Boom | 35 ft 2 in ft/in (10710 mm) |
| Dump Height - Mono Boom | 23 ft 2 in ft/in (7040 mm) |
| Dig Height - Mono Boom | 32 ft 9 in ft/in (9980 mm) |
| Vertical Wall - Mono Boom | 20 ft ft/in (6080 mm) |
| Track Gauge - Standard | - |
DESCRIPTION
| Dipper Length - Standard | 10 ft ft/in (3050 mm) |
| Telematics Available | No |
CAPACITIES
| Hydraulic Tank | 57 gallons (US) (215 ltr) |
| Fuel Tank | 125 gallons (US) (472 ltr) |
WEIGHTS
| Operating Weight | 69,300 lbs (31020 kg) |
