Wheel Loaders

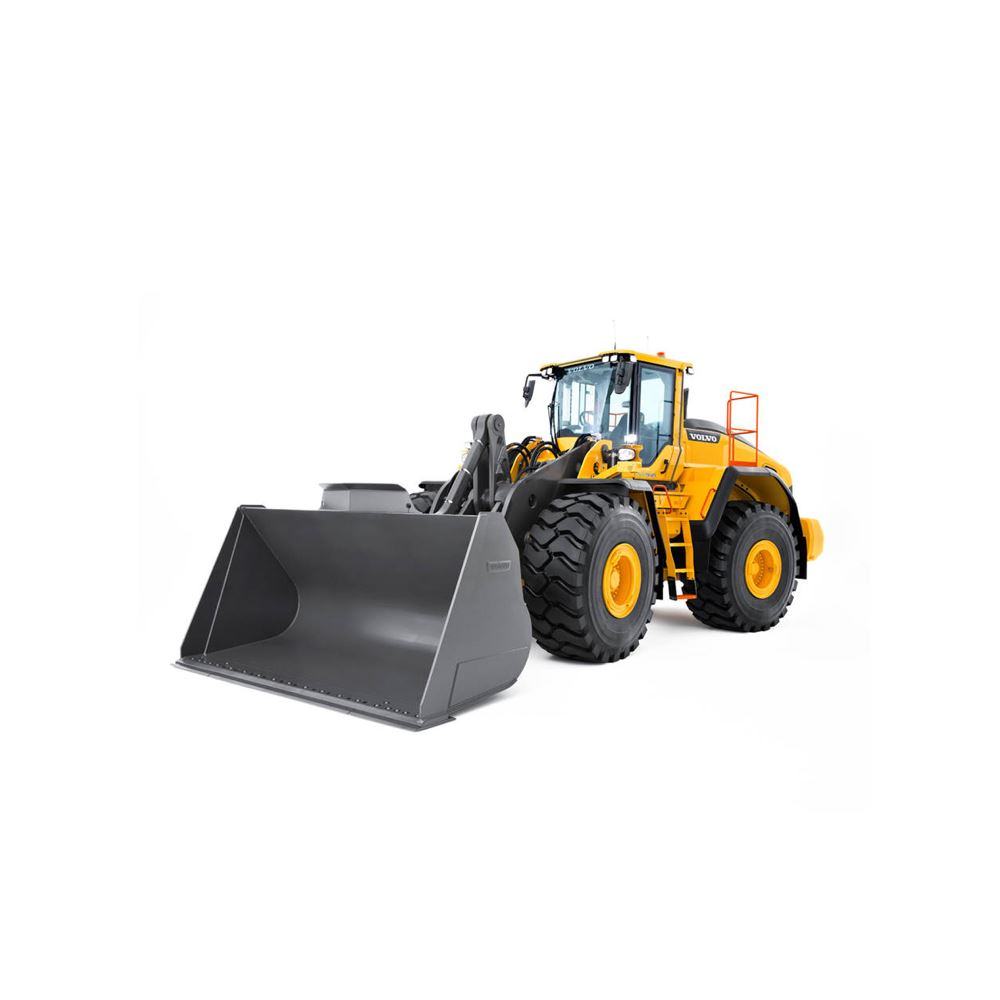

Volvo L 180 H

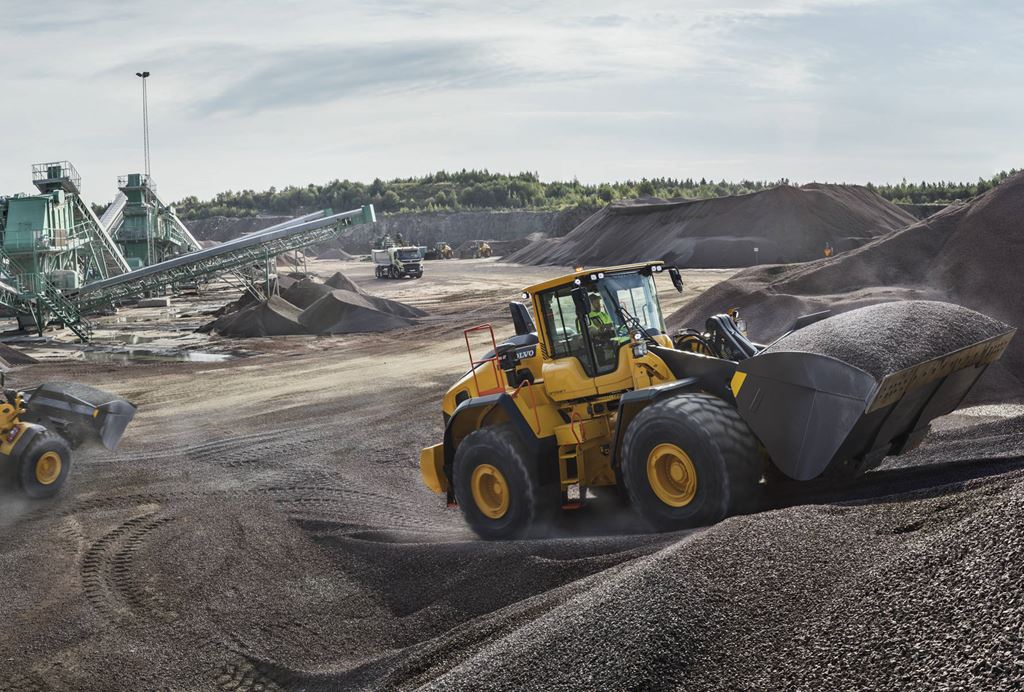

The new H-series L180 is more efficient, more productive and more intelligent than the former G-series. Achieve up to 15% greater fuel efficiency, thanks to a powerful engine, second generation OptiShift and new dry P-Brake. To boost productivity by up to 10%, the L180H has also been upgraded with a new transmission, new converter and revised gear ratio.
Features and Benefits
Volvo L 180 H Wheel Loader - SMARTER, FASTER, STRONGER
Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)
2019 EquipmentWatch Lowest Cost of Ownership Award

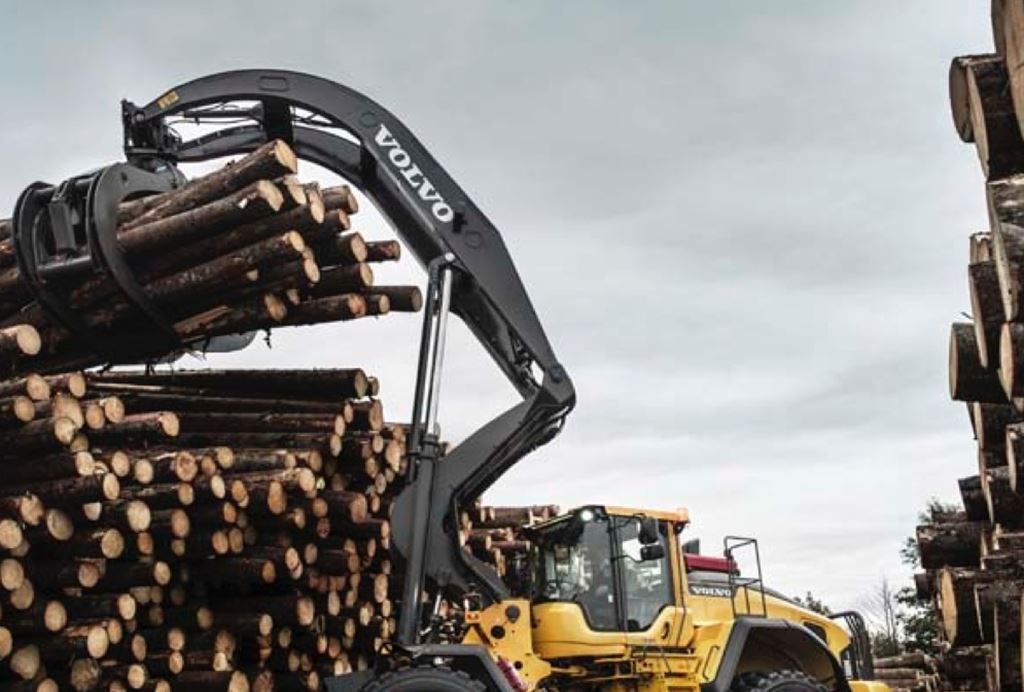

Wide range of attachments
Comfortable cab
Excellent hydraulics
Easy-to-use controls
Outstanding serviceability
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
PERFORMANCE
| Straight Tipping Load | 51,230 lbs (23230 kg) |
| Breakout - Bucket | 48,610 lbf (22049.13 kgf) |
| Breakout - Bucket | 48,610 lbf (22049.13 kgf) |
| Straight Tipping Load - Deflection | - |
| Bucket Breakout | 48,610 lbf (216.2 kN) |
| Full Turn Tipping Load - Deflection | - |
| Full Turn Tipping Load | 44,750 lbs (20290 kg) |
| Load Sensing | Yes |
| Ride Control System | Optional |
| Oscillation - Rear Axle | 30 |
DRIVELINE
| Service Brake - Location | All Wheels |
| Engine Output - Gross | 330 hp (246 kW) |
| Engine Output - Net | 329 hp (245 kW) |
| Inverter - Type | - |
| Emissions Technology | Cooled Exhaust Gas Recirculation |
| Tire size - Standard | 27 R25 |
| Generator - Type | - |
| After Treatment System | Diesel Particulate Filter |
| Torque | 1,497 lbf / ft (2030 Nm) |
| Hydrostatic Brake - Actuation | - |
| Displacement | 781 Inches³ (12.8 ltr) |
| Brake Resistor | - |
| Engine Model | D13J |
| Tyre - Model | XHA 2 |
| Tire - Model | XHA 2 |
| Aspiration | Var. Geometry Turbo w/Intercooler |
| Traction Control | No |
| Motor - Type | - |
| Transmission Model | HTL 223 |
| Transmission Manufacturer | Volvo |
| Transmission Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Transmission Type | Powershift |
| Emission Rating | Tier 4 / Stage IV |
| Tire - Manufacturer | Michelin |
| Service Brake - Type | Wet Disc |
| Hydrostatic System Braking | - |
| Rated Speed | 1,300 |
CAPACITIES
| Heaped Capacity | 7 yd³ (5.5 m³) |
| Fuel Tank | 97 gallons (US) (366 ltr) |
DIMENSIONS
| Dig Depth | 5 inches (131 mm) |
| Full Lift Reach | 4 ft 6 in ft/in (1370 mm) |
| Height - Maximum | 20 ft 9 in ft/in (6320 mm) |
| Ground clearance | 19 inches (480 mm) |
| Dump Angle - At Dump | 45 |
| Loader - Arm Type | Double Arm |
| Turn radius over bucket - std. | 24 ft 7 in ft/in (7505 mm) |
| Dump Angle - Maximum | 49 |
| Wheelbase | 11 ft 8 in ft/in (3550 mm) |
| Height - Over Cab | 11 ft 9 in ft/in (3580 mm) |
| Width Over tires - Std | 9 ft 9 in ft/in (2960 mm) |
| Length with bucket on ground | 29 ft 5 in ft/in (8970 mm) |
| Full Lift Dump Height | 9 ft 11 in ft/in (3010 mm) |
| Height - Pivot Pin | 14 ft 8 in ft/in (4470 mm) |
| Bucket Type | Rehandling w/Bolt-On Edge - Pin On |
| Bucket Width | 11 ft 1 in ft/in (3400 mm) |
| Loader - Geometry | Torque Parallel |
| Full Lift Dump Height - Maximum | 10 ft ft/in (3060 mm) |
WEIGHTS
| Operating Weight | 62,390 lbs (28300 kg) |
