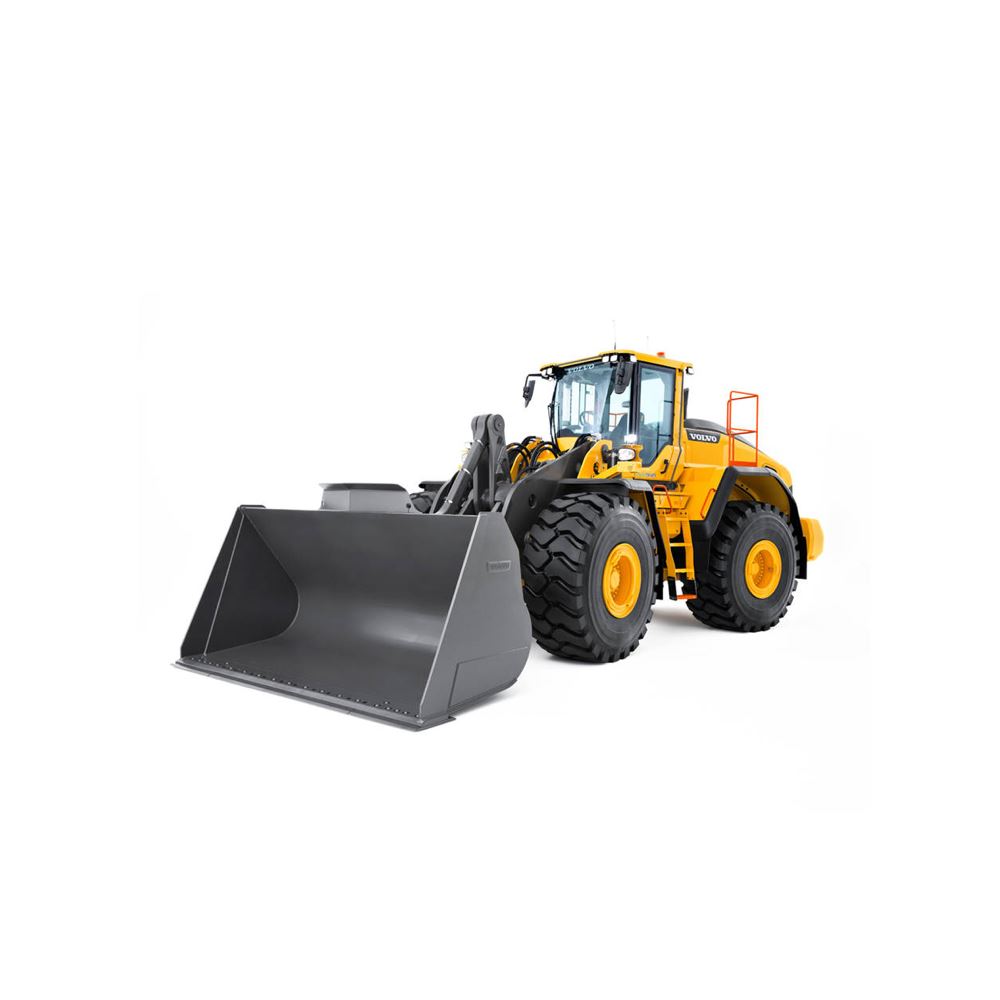

Volvo L 220 H
The new H-series L220 is more efficient, more productive and more intelligent than the former G-series. Achieve up to 15% greater fuel efficiency, thanks to a powerful engine, second generation OptiShift and new dry P-Brake. To boost productivity by up to 10%, the L220H has also been upgraded with a new transmission, new converter and revised gear ratio.
Features and Benefits
Volvo L 220 H Wheel Loader - LEGENDARY LOADING
Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)

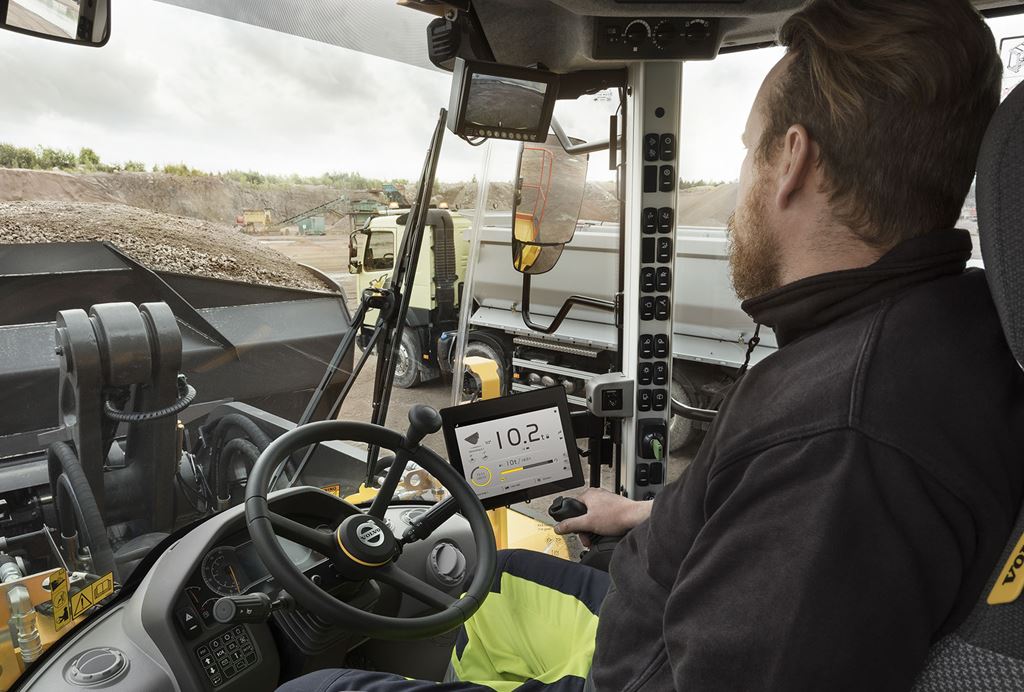

Comfortable cab
Excellent hydraulics
Easy-to-use controls

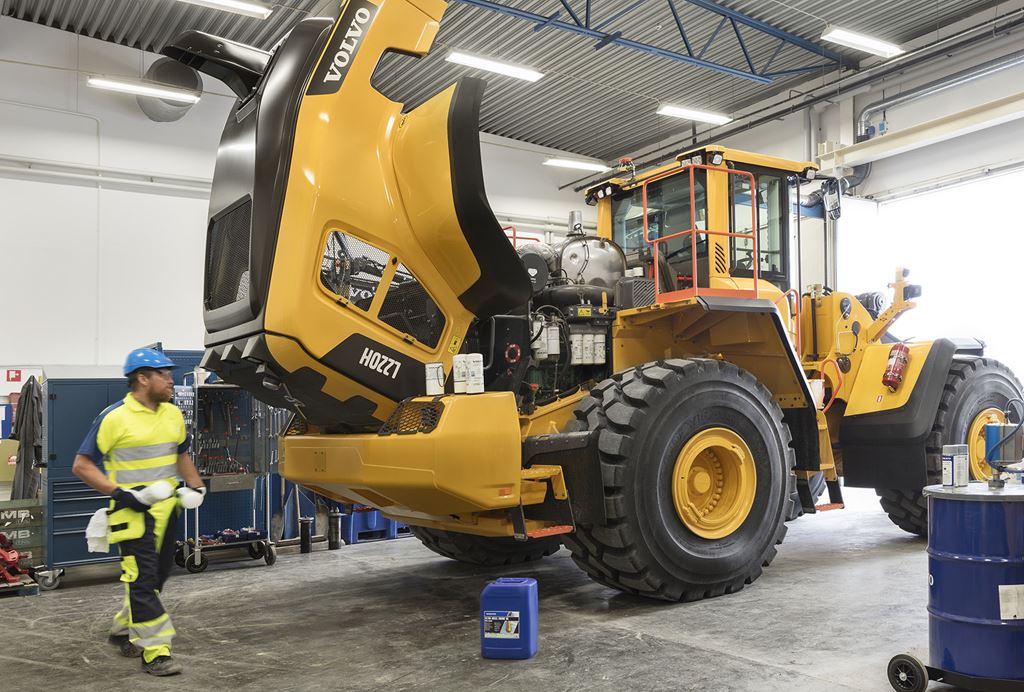

Outstanding serviceability
Technical Specifications
Here are the key specifications for this product model. Want to know more about this equipment? Download the brochure or contact us.
PERFORMANCE
| Straight Tipping Load | 54,800 lbs (24850 kg) |
| Bucket Breakout | 48,350 lbf (215 kN) |
| Straight Tipping Load - Deflection | - |
| Full Turn Tipping Load - Deflection | - |
| Breakout - Bucket | 48,350 lbf (21931.19 kgf) |
| Breakout - Bucket | 48,350 lbf (21931.19 kgf) |
| Full Turn Tipping Load | 47,860 lbs (21700 kg) |
| Load Sensing | Yes |
| Ride Control System | Optional |
| Oscillation - Rear Axle | 30 |
CAPACITIES
| Heaped Capacity | 8 yd³ (6.3 m³) |
| Fuel Tank | 97 gallons (US) (366 ltr) |
DRIVELINE
| Engine Output - Gross | 367 hp (274 kW) |
| Tire size - Standard | 30 R25 |
| Generator - Type | - |
| Emissions Technology | Cooled Exhaust Gas Recirculation |
| After Treatment System | Diesel Particulate Filter |
| Inverter - Type | - |
| Torque | 1,645 lbf / ft (2231 Nm) |
| Engine Output - Net | 366 hp (273 kW) |
| Hydrostatic Brake - Actuation | - |
| Brake Resistor | - |
| Service Brake - Location | All Wheels |
| Engine Model | D13J |
| Tyre - Model | XHA 2 |
| Tire - Model | XHA 2 |
| Aspiration | Var. Geometry Turbo w/Intercooler |
| Traction Control | No |
| Motor - Type | - |
| Transmission Model | HTL 310 |
| Transmission Manufacturer | Volvo |
| Transmission Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Engine Manufacturer | Volvo |
| Transmission Type | Powershift |
| Emission Rating | Tier 4 / Stage IV |
| Tire - Manufacturer | Michelin |
| Service Brake - Type | Wet Disc |
| Hydrostatic System Braking | - |
| Rated Speed | 1,300 |
| Displacement | 781 Inches³ (12.8 ltr) |
WEIGHTS
| Operating Weight | 71,140 lbs (32260 kg) |
DIMENSIONS
| Full Lift Reach | 4 ft 10 in ft/in (1480 mm) |
| Height - Maximum | 21 ft 7 in ft/in (6590 mm) |
| Ground clearance | 21 inches (530 mm) |
| Dig Depth | 5 inches (119 mm) |
| Dump Angle - At Dump | 45 |
| Loader - Arm Type | Double Arm |
| Turn radius over bucket - std. | 25 ft 7 in ft/in (7810 mm) |
| Dump Angle - Maximum | 48 |
| Wheelbase | 12 ft 2 in ft/in (3700 mm) |
| Height - Over Cab | 12 ft 3 in ft/in (3730 mm) |
| Width Over tires - Std | 10 ft 4 in ft/in (3150 mm) |
| Length with bucket on ground | 30 ft 10 in ft/in (9390 mm) |
| Full Lift Dump Height | 10 ft 1 in ft/in (3080 mm) |
| Height - Pivot Pin | 15 ft 3 in ft/in (4660 mm) |
| Bucket Type | Rehandling w/Bolt-On Edge - Pin On |
| Bucket Width | 11 ft 1 in ft/in (3400 mm) |
| Loader - Geometry | Torque Parallel |
| Full Lift Dump Height - Maximum | 10 ft 4 in ft/in (3160 mm) |
